Topic starter
29/12/2024 10:04 am

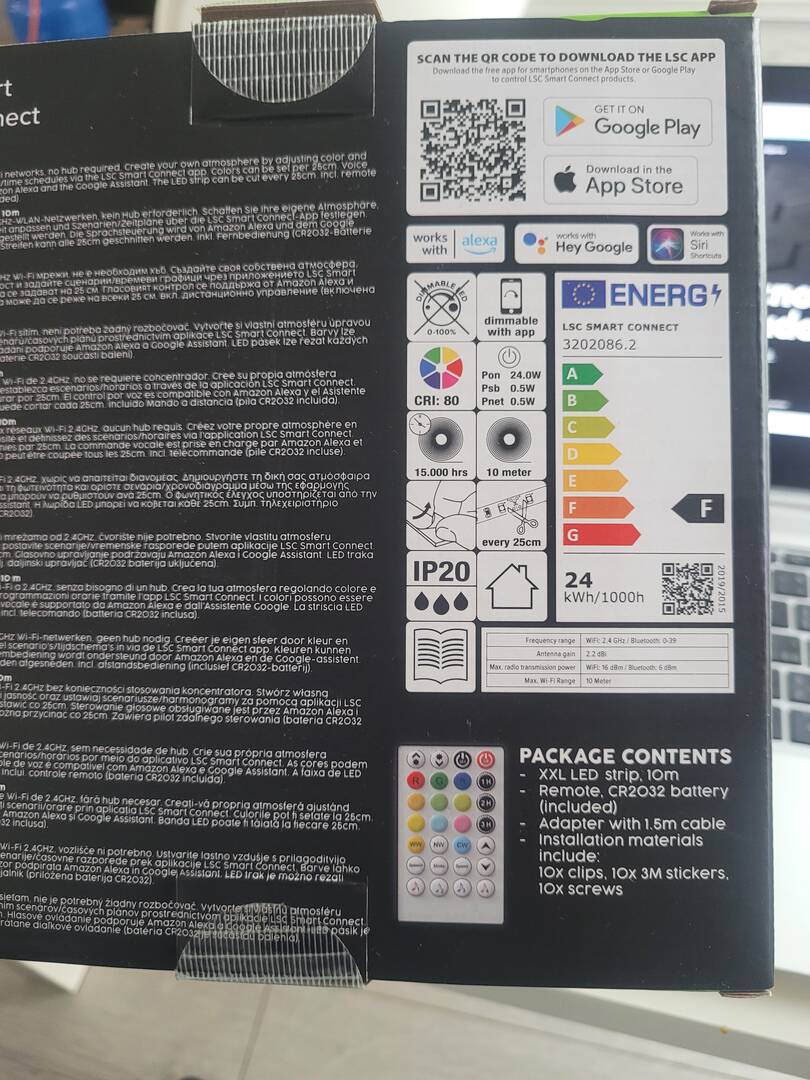

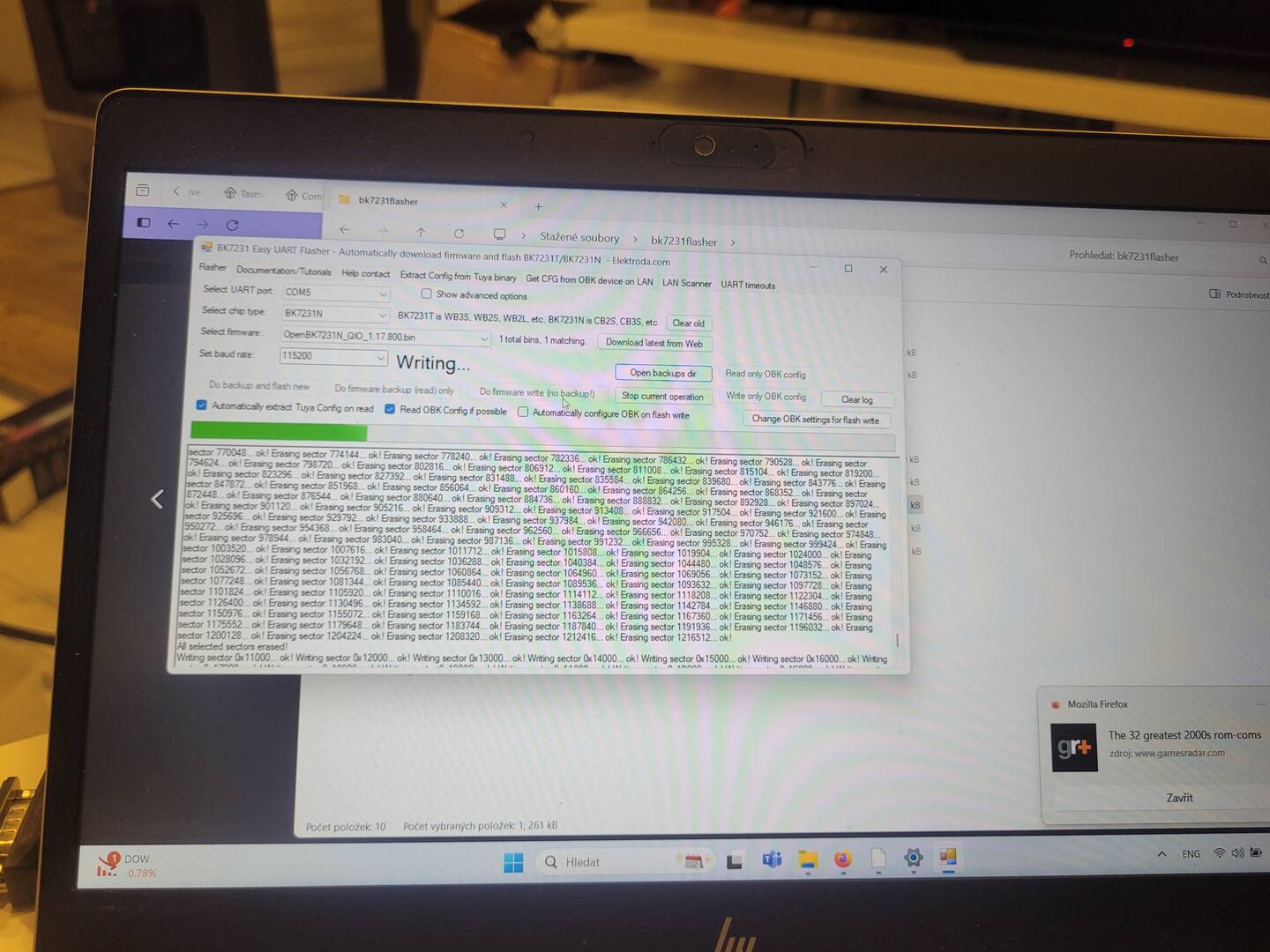

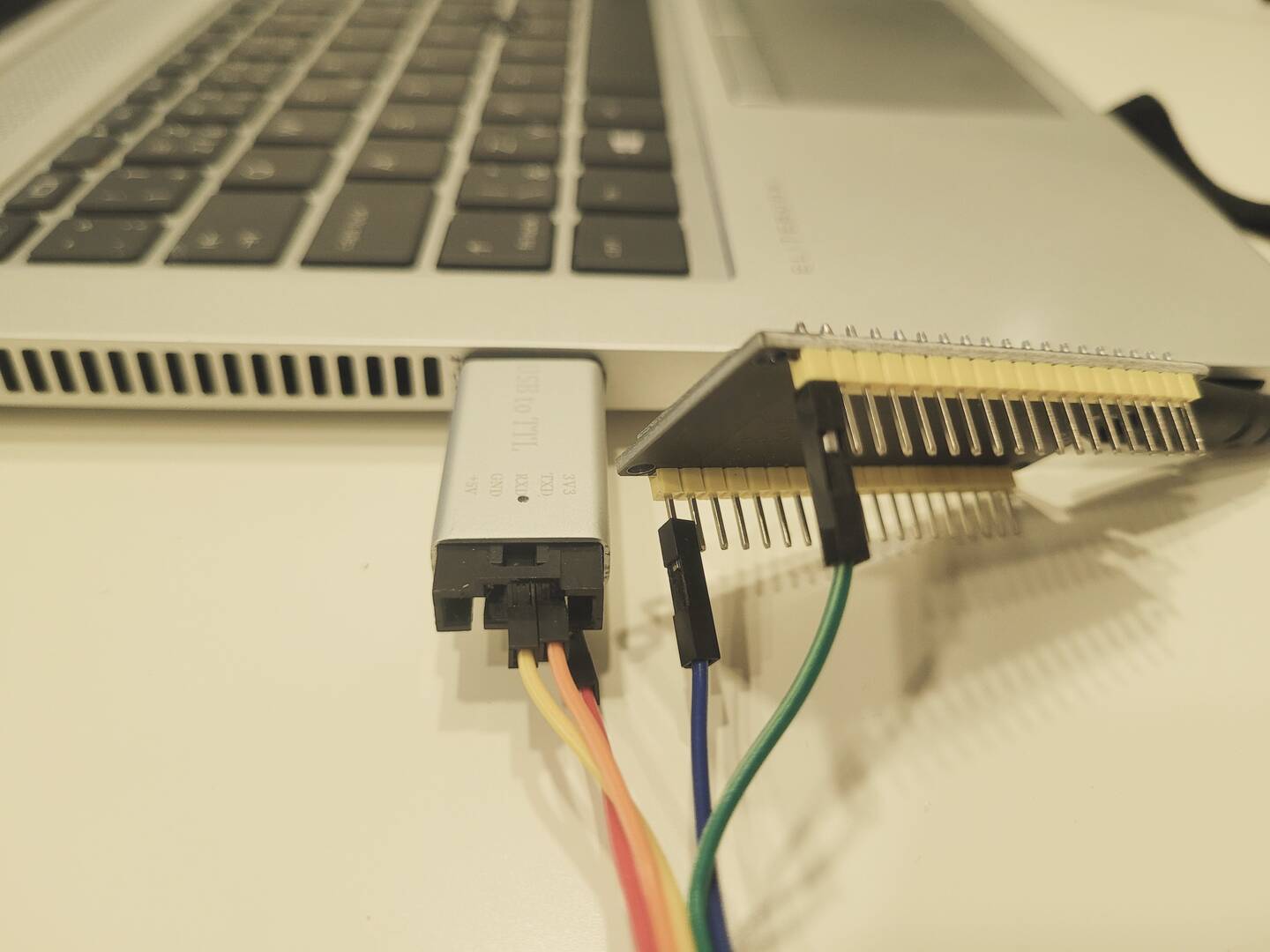

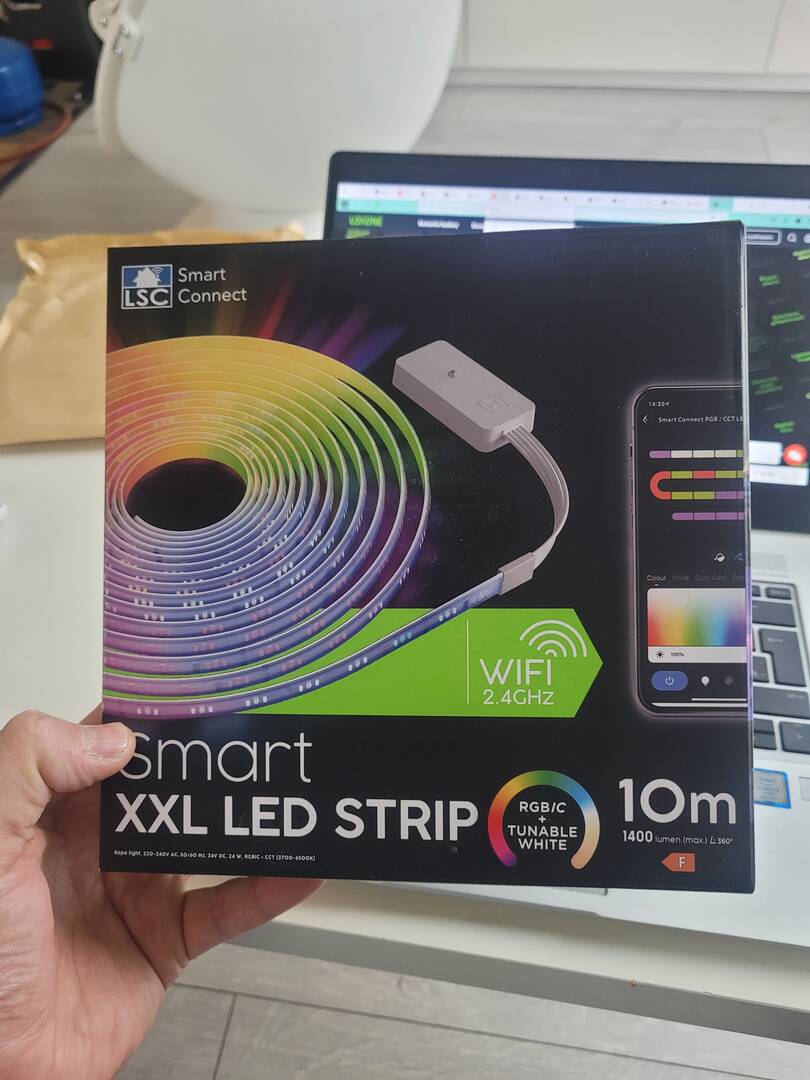

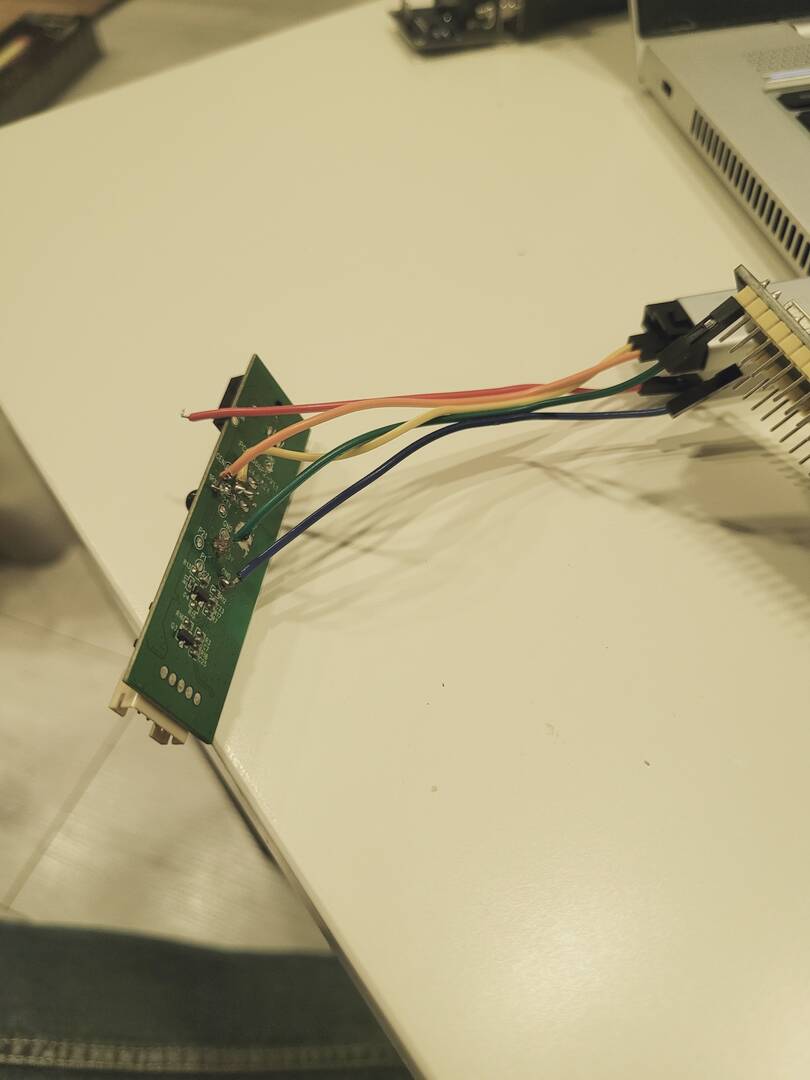

Ahoj v Actionu sem objevil LED pasek na 24V. Tim je super vhodny pro chytry baraky. Navic je v tom cip BK7231N ktery je podporovany projektem OpenBeken. Tak sem to flashnul zbavil se tuya cloudu a krasne to funguje. Navic opensource firmware a podpora.
Takze bezte dokad to maj. Podle systemu maj uz jen par desitek kusu.
Topic starter
31/12/2024 8:58 pm

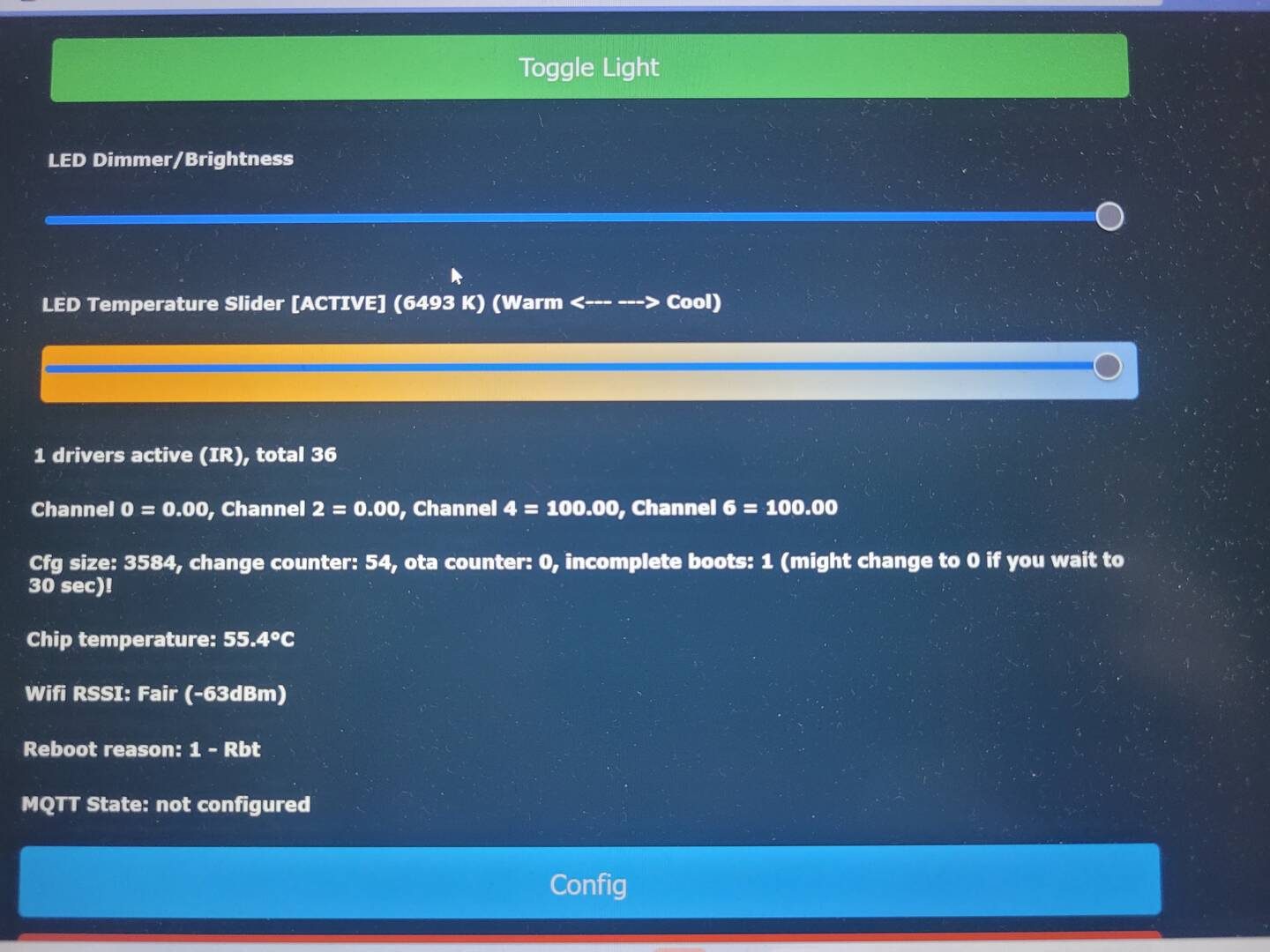

OK mam to rozchozene. Kdyby to nekdo nekdy poridil a chtel si take hrat, tak spravna konfigurace s OpenBeken verze 1.17.819 je:
P6 -> PWM/6
P16 -> SM16703P_DIN
P20 -> BTN
P22 -> AlwaysHigh !!! Pozor musi byt nastaveno aby LED svitily
P24 -> PWM/4
P26 -> IRRecv
a do autoexec.bat dat:
startDriver SM16703P
SM16703P_Init 48 RBG
startDriver PixelAnim
This post was modified 1 year ago by cijoml
